Multiarch 1

We are given a binary called multiarch and another binary file called crackme.masm.

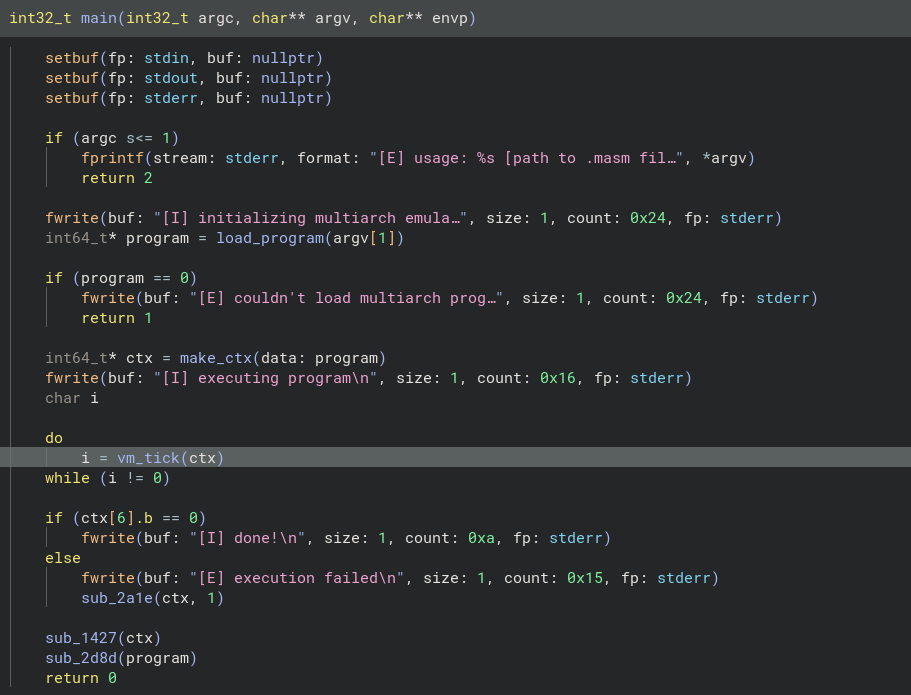

The make_ctx function gives us information about the runtime of the VM via a struct containing the context.

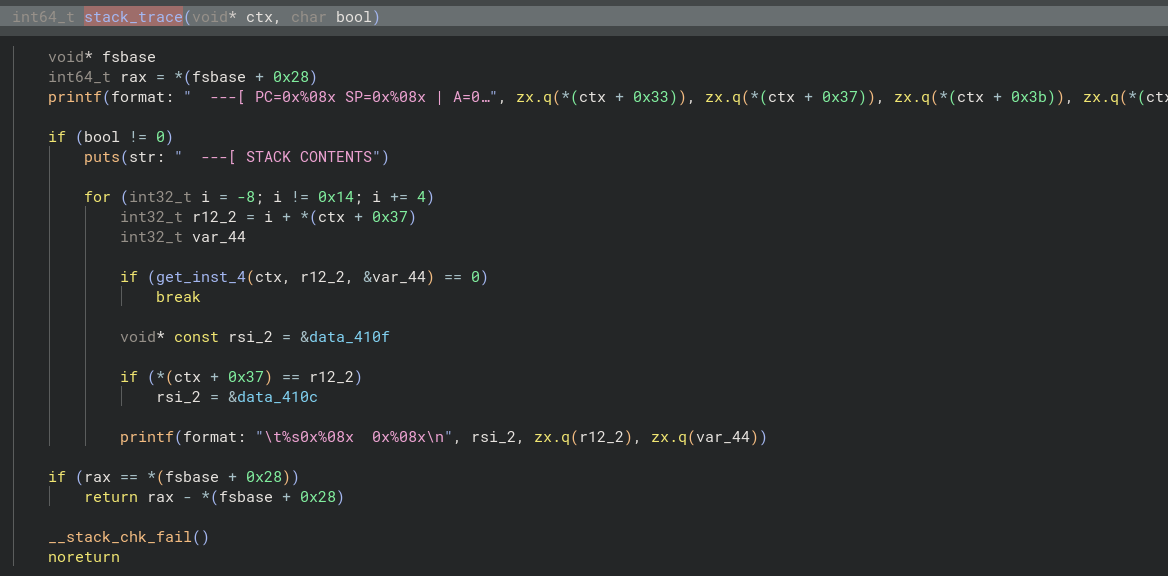

The other information about the context, can be gained from stack_trace function

struct Context
{
    void *mmap_sec_1;
    void *mmap_sec_2;
    void *mmap_sec_3;
    void *__wierd_calloc__;
    char reserved_1[8];
    void *getenv_callback;
    bool trigger_exception;
    bool permission_syscall;
    uint8_t eflag;
    uint32_t memory_offset;
    uint32_t stack_offset;
    uint32_t mA;
    uint32_t mB;
    uint32_t mC;
    uint32_t mD;
};

These are all the parameters in the VM Context.

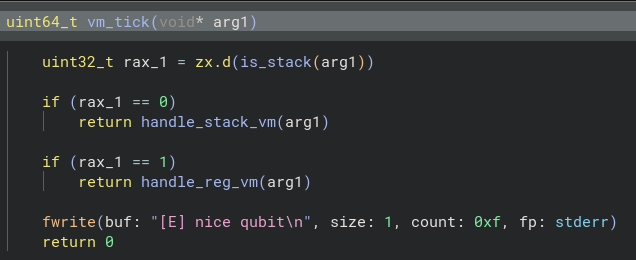

The VM runs in 2 modes: Stack and Register. This function is looped over until either one of the functions returns a 0 (which is ig a hlt instruction equivalent).

We can explore handle_stack_vm and get these opcodes from analysing each branch.

enum stack_vm_opcodes
{
    S_LDB = 0x10,
    S_LDW = 0x20,
    PUSH_STACK = 0x30,
    S_LDP = 0x40,
    POP_STACK = 0x50,
    ADD = 0x60,
    SUB = 0x61,
    XOR = 0x62,
    AND = 0x63,
    JMP = 0x70,
    JZ = 0x71,
    JNZ = 0x72,
    CMP = 0x80,
    SYSCALL = 0xA0,
    S_HLT = 0xFF,
};

We can similarly look into the handle_reg_vm function and get information about the opcodes from there.

enum reg_vm_opcodes
{
    REG_HALT = 0x0,
    REG_SYSCALL = 0x1,
    REG_PUSH = 0x10,
    PUSH_REG0 = 0x11,
    PUSH_REG1 = 0x12,
    PUSH_REG2 = 0x13,
    PUSH_REG3 = 0x14,
    POP_REG0 = 0x15,
    POP_REG1 = 0x16,
    POP_REG2 = 0x17,
    POP_REG3 = 0x18,
    ADD_REG = 0x20,
    ADD_IMM = 0x21,
    SUB_REG = 0x30,
    SUB_IMM = 0x31,
    XOR_REG = 0x40,
    XOR_IMM = 0x41,
    MUL_REG = 0x50,
    MUL_IMM = 0x51,
    JMP_ABS = 0x60,
    CALL = 0x61,
    JZ_REG = 0x62,
    JNZ_REG = 0x63,
    JMP_FLAG2 = 0x64,
    JMP_IMM = 0x68,
};

And we also can figure out the syscall codes.

enum sycall_codes
{
    SYS_GET_INPUT = 0x0,
    SYS_PRINT = 0x1,
    SYS_WRITE = 0x2,
    SYS_SRAND = 0x3,
    SYS_RAND = 0x4,
    SYS_FLAG = 0x5,
    SYS_MALLOC = 0x6,
};

We run the vm inside of gdb and break out at the first task, and skip instructions until we reach some operator, then see the relevant disassembly.

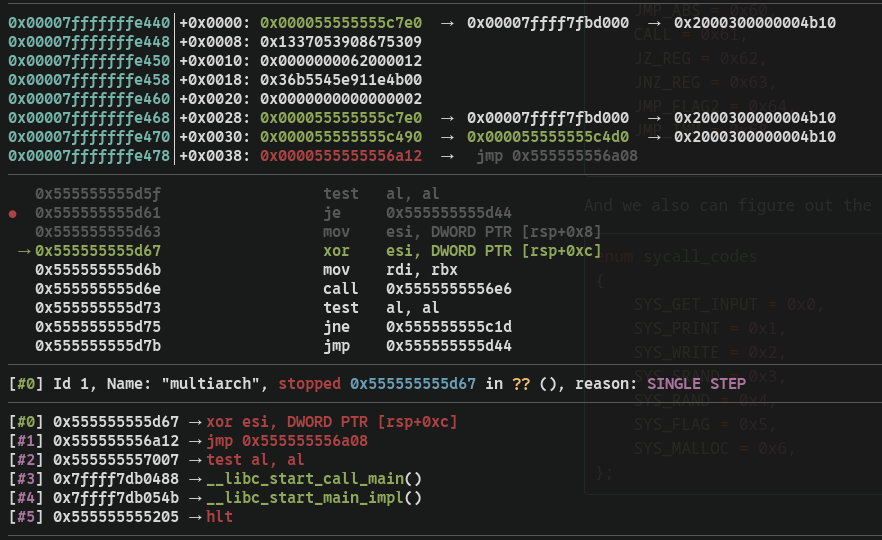

We can see that [rsp+0x8] and [rsp+0xc], are xor-ed together, and after that it calls another function at some address, which if we follow its execution, we see that it makes multiple syscalls and then we see that there is another operation

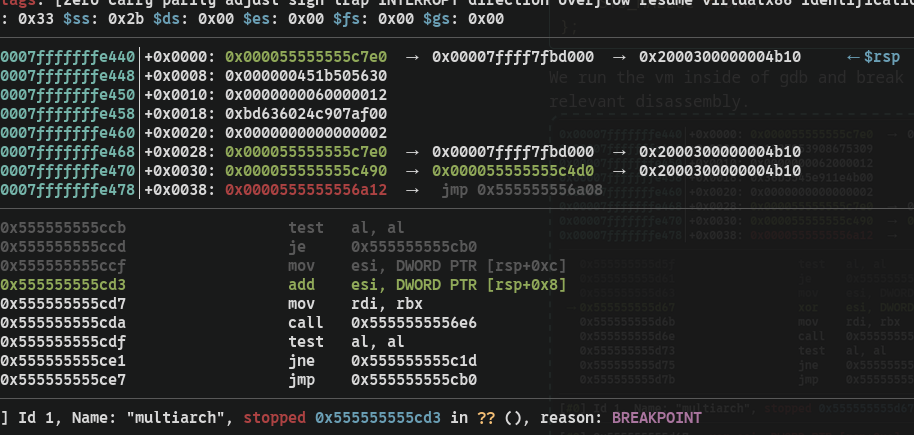

This is another operation where [rsp+0x8] and [rsp+0xc] are added.

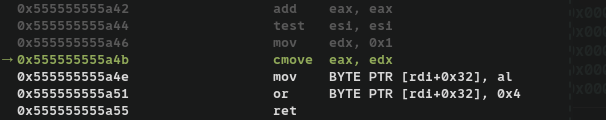

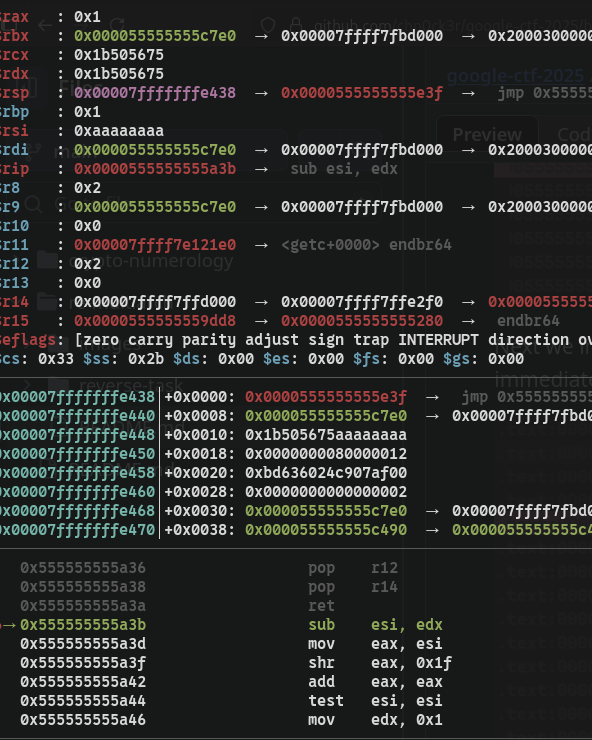

Skipping further ahead, we observe that some values are loaded edx which is subtracted from 0xaaaaaaaa. We can ignore the other instructions and notice that where there is a cmove instruction. Lets go to where it would have taken us by providing a value such that it passes test esi, esi

First there is an xor between constants 0x8675309 and 0x13370539, and then the result is stored. This result is added to our input and stored. The result of this operation is then subtracted from 0xaaaaaaaa as mentioned above which triggers an exception if the difference is non-zero. So we have to figure out a input which would be equal to 0xaaaaaaaa after this bunch of operations. Simply entering these values in python and solving for the input gives us 0x8f5a547a or 2405061754.

If we give this as an input to the first challenge, we pass it and reach the 2nd challenge “Tell me a joke”.

When we walk through the execution, we can observe that:

• Our input bytes (4 at a time) are multiplied by 0xCAFEBABE using MUL_IMM.
• The output is stored into 2 registers C (lower bits) and D (higher bits)
• Store the value of B ^ D into B (initially 0)
• Do this 7 times
• If the value of B is not equal to 0x7331 it will not allow us to pass to the next challenge, so we have to simply figure out a value of an input which will produce such an output.

Our
