POSTVIEWER v5² WRITEUP

Introduction

This year’s Postviewer in Google CTF was a SafeContentFrame (SCF) playground ,a client-side puzzle where files render on a sandbox origin instead of your app’s origin. Only 2 solves. It’s intentionally evil: the fix is simple, the race is not.

1) Upload & store (IndexedDB)

Files (cached or non-cached) are stored client-side with metadata:

async addFile({ id, file, cached, isPublic}) {
  const db = await this.dbPromise;
  const tx = db.transaction(["files", "info"], "readwrite");
  const filesdb = tx.objectStore("files");
  const infodb = tx.objectStore("info");

  const req = filesdb.put({ id, file, cached, isPublic });
  return new Promise((resolve) => {
    req.onsuccess = () => {
      const fileInfo = { id, name: file.name, cached, isPublic, date: Date.now() };
      const req2 = infodb.put(fileInfo);
      req2.onsuccess = () => resolve(fileInfo);
    };
  });
}

2) Render pipeline (SCF URL + shim)

Selecting a file (click or #<N> deep-link) kicks off the SCF flow. The app computes a hash from product + salt + origin, base36’d and fixed-width, to build the shim URL:

async function calculateHash(...parts) {
  const encoder = new TextEncoder();
  const newParts = [];
  for (let i = 0; i < parts.length; i++) {
    const part = parts[i];
    newParts.push(typeof part === "string" ? encoder.encode(part).buffer : part);
    if (i < parts.length - 1) newParts.push(encoder.encode("$@#|").buffer);
  }
  const buffer = concatBuffers(...newParts);
  const hash = await crypto.subtle.digest("SHA-256", buffer);
  return arrayToBase36(new Uint8Array(hash)).padStart(50, "0").slice(0, 50);
}

const product = "google-ctf";
const hash = await calculateHash(product, salt, window.origin);
const url = `https://${hash}-h748636364.scf.usercontent.goog/${product}/shim.html`;

Then the parent creates/points the iframe and attaches onload before the load completes:

safeFrameIframe.addEventListener("load", safeFrameLoaded, true);
safeFrameIframe.src = url; // shim.html on SCF

3) Parent ⇄ Shim handshake (normal)

On LOAD(shim) the parent posts the file over:

safeFrameIframe.contentWindow.postMessage(
  { body, mimeType, salt },
  url.origin,
  [messageChannel.port2]
);

Shim verifies origin+salt and replies with “Reloading iframe”; parent removes the handler and shim swaps itself for the blob file:

if (e.data.message == "Reloading iframe") {
  safeFrameIframe.removeEventListener("load", safeFrameLoaded, true);
  resolve();
}

4) Cached vs Non-cached salts

function getRandom(n) {
  return Array.from(Array(n), Math.random)
    .map(e => e.toString(36).slice(2))
    .join('');
}

async function renderFile({ id, cached, file }, safeFrameIframe) {
  let salt;
  const encoder = new TextEncoder();
  if (cached) {
    salt = encoder.encode(id).buffer; // filename-based
  } else {
    const rand = getRandom(5); // 5 chunks from Math.random()
    mathRandomInvocations.push(rand);
    salt = encoder.encode(rand).buffer;
  }
  return window.safeFrameRender({
    body: await file.arrayBuffer(), mimeType: file.type, salt, cached
  }, safeFrameIframe);
}

The app can auto-open a file at load if the URL ends in #<index>.

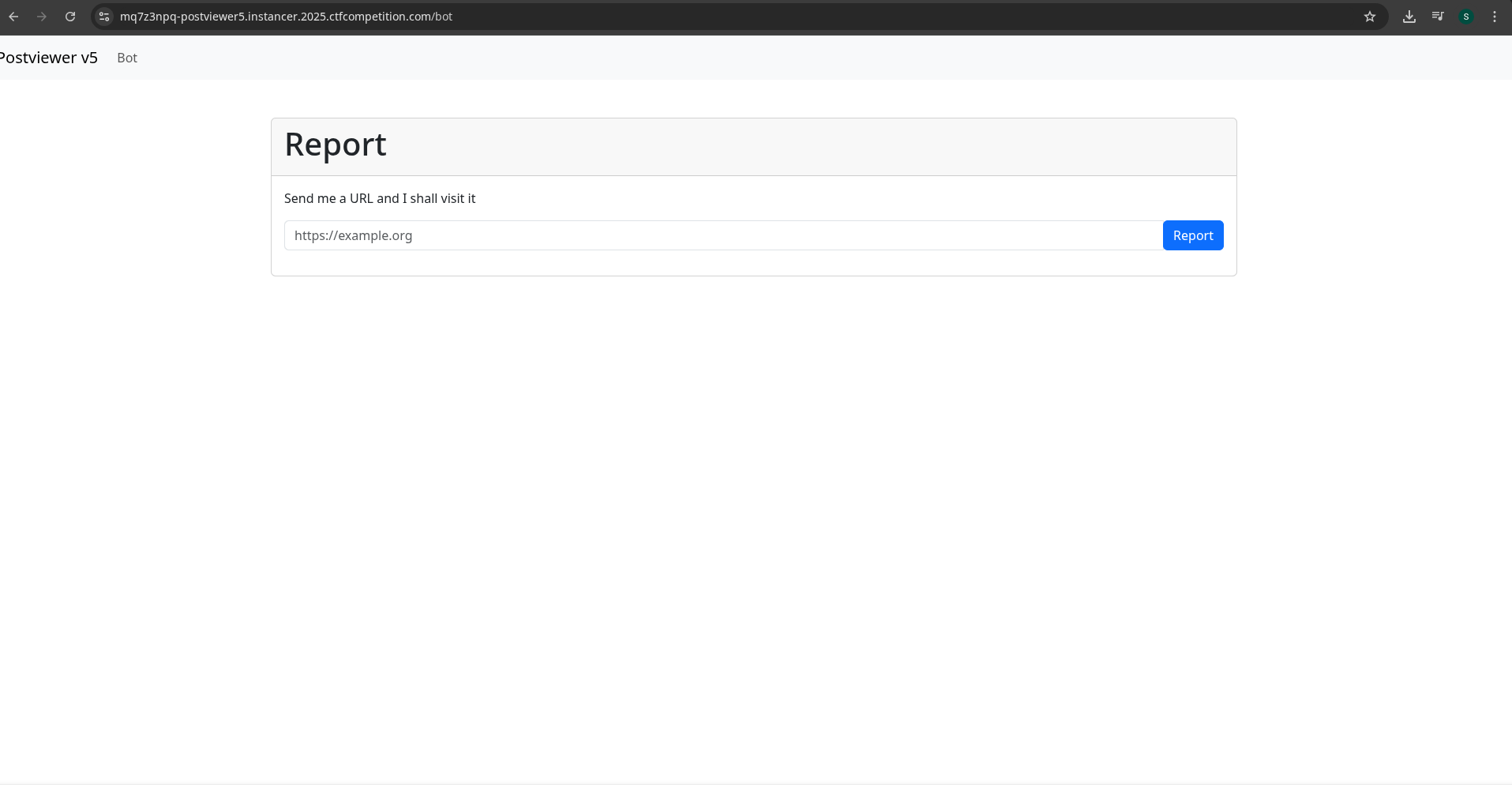

Bot behavior (context)

  1. Bot opens the app (localhost), adds a non-cached file containing the plaintext flag.
  2. Bot visits our supplied URL (our exploit page).
  3. After ~5 minutes, the bot closes the browser.

So when our exploit runs, the flag file already exists in IndexedDB, and its salt path is driven by Math.random().

The Race Condition

TL;DR: We want the parent to send {…, salt} twice; the second send must land while our leaker is already the iframe document, and before the parent processes the shim’s ACK (which would remove the handler).

Normal cycle (why leakage doesn’t happen by default)

APP: attach onload → iframe.src = SHIM
SHIM loads → LOAD fires → APP → SHIM: {body, mimeType, salt}
SHIM verifies → posts ACK → APP removes onload
SHIM replaces itself with blob(file) (file now runs) → but APP won’t send again

Why no leak: the send happens before our doc ever runs; after ACK, onload is gone.

Exploit vision

We need one more LOAD to be handled before the ACK. That makes APP re-run the onload handler and resend the salt into whatever is currently inside the iframe → our leaker.

Two-cycle plan (Shim₁ + Shim₂)

Cycle A (cached, Shim₁ → Navigator)

Cycle B (non-cached, Shim₂ → Leaker)

Why stalling works

// provided by the challenge (intended/unintended gadgets)
window.onmessage = async function(e){
  if(e.data.type == 'share'){
    // can loop absurd amounts: {file:{length:1e8}}
    for (var i = 0; i < e.data.files.length; i++) { /* burn */ }
  }
  if(e.data.slow){
    for (i = e.data.slow; i--; );
  }
}

<!-- Navigator (cached) → keeps re-navigating -->
<script>
setTimeout(() => {
  location = URL.createObjectURL(
    new Blob([document.documentElement.innerHTML], {type: 'text/html'})
  );
}, 150);
</script>

<!-- Leaker (non-cached) → catch the resend -->
<script>
onmessage = e => leak(e.data.salt);
</script>

handler timing

After the leak: PRNG → XSS pivot → flag

Once we have one non-cached salt, the rest is deterministic engineering.

1) Split the salt into 5 base36 chunks

The non-cached salt is the concatenation of 5 Math.random() outputs in base36. E.g.

salt = r1.toString(36).slice(2)
     + r2.toString(36).slice(2)
     + r3.toString(36).slice(2)
     + r4.toString(36).slice(2)
     + r5.toString(36).slice(2);

Chunk lengths vary (~10–12 chars). Recovering them is a small search:

Outcome: five consecutive PRNG outputs recovered.

2) Recover PRNG state & predict forward

With several consecutive outputs, you can reconstruct the PRNG’s state and produce future Math.random() values on demand. End product: a nextRandom() you control.

3) Hunt a short predicted salt (< 51 chars total)

We need a predicted concatenation S* = s1+s2+s3+s4+s5 whose total length < 51. Iterate nextRandom() 5-at-a-time until such a concatenation appears.

4) Craft a cached XSS pinned to that salt

5) Keep a handle to the SCF doc

The app hides the SCF iframe behind a shadowRoot. From your XSS, open or navigate to that exact SCF URL and store a reference so you can still talk to it later:

const scfUrl = makeScfUrlFromSalt(Sstar);
const w = window.open(scfUrl, "scfS"); // or keep a ref after location.replace
// later: w.document.body.textContent → same-origin DOM read

6) Burn salts until the next non-cached = S*

Each non-cached render consumes 5 PRNG draws. Force the app to render dummy non-cached files to advance in steps of 5 until the predictor says the next salt will be S*.

7) Render the flag file

Trigger the app to render the real flag file. Its non-cached salt equals S* now → it loads on the same SCF origin as your cached XSS payload.

8) Same-origin = victory

End-to-end playbook-recapped

  1. Share cached Navigator; let it start looping navigations (extra LOADs exist now).
  2. Start non-cached Leaker; fresh onload attached; first send verifies.
  3. Stall parent; ACK delayed; iframe swaps to Leaker.
  4. Unstall; a queued LOAD fires before ACK → parent re-sends salt → Leaker leaks.
  5. Split leaked salt → recover PRNG → predict forward.
  6. Find short predicted salt <51 → craft cached XSS with filename=S* and body-hash shorter than filename.
  7. Store handle to SCF(S*) document.
  8. Burn PRNG outputs (dummy non-cached renders) until next non-cached salt = S*.
  9. Render flag → now on same SCF origin as our XSS → read & exfil.

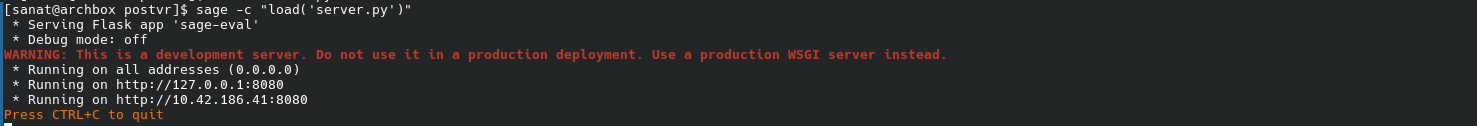

Environment

I was using Arch which gave me 2 separate headaches:

Fix: spin a tiny Ubuntu 22.04 VM on Goggle Cloud with a public IP, open HTTP.

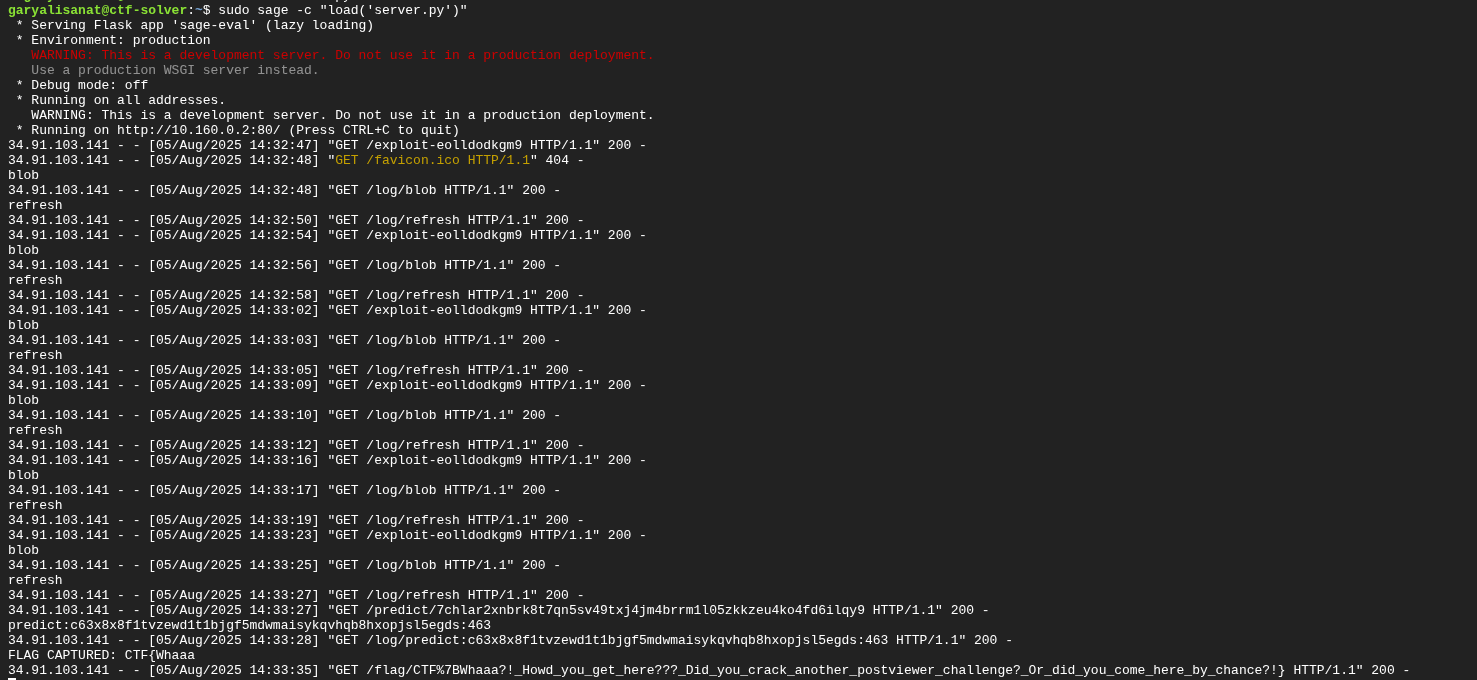

Flag:

```
